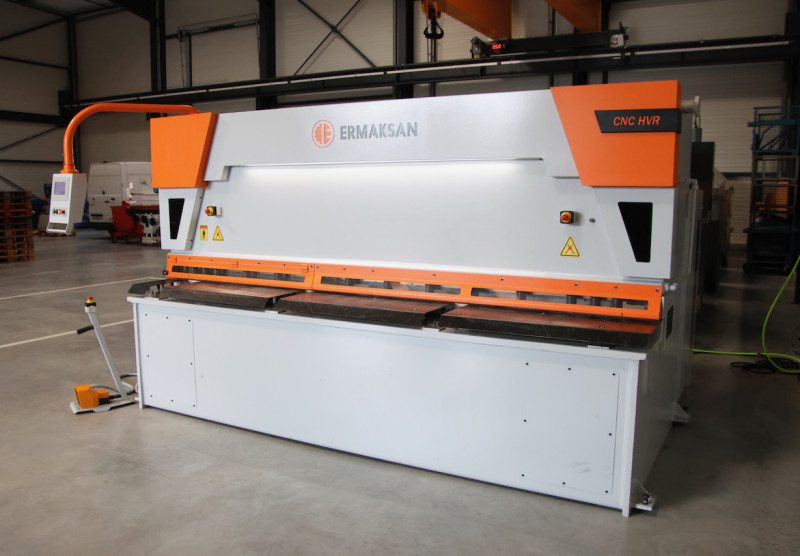

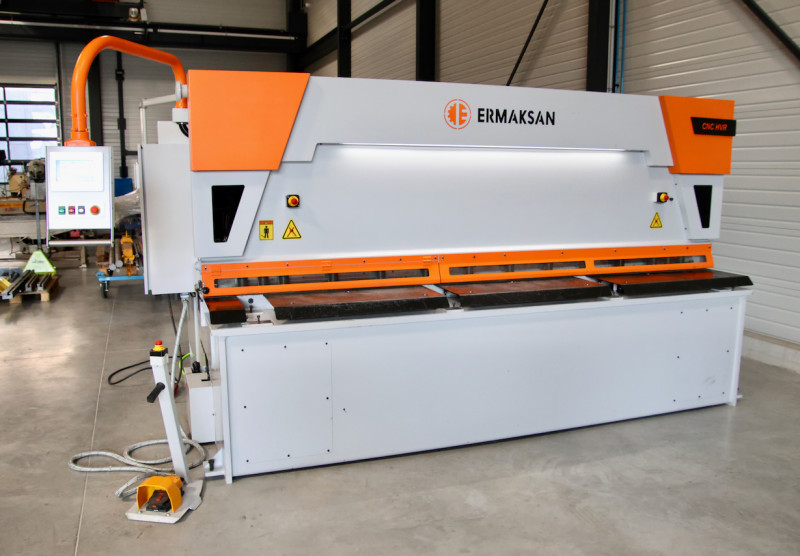

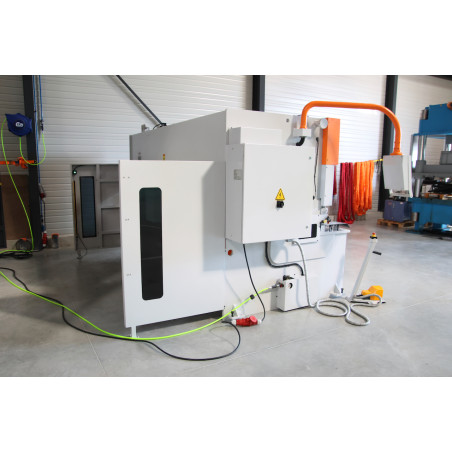

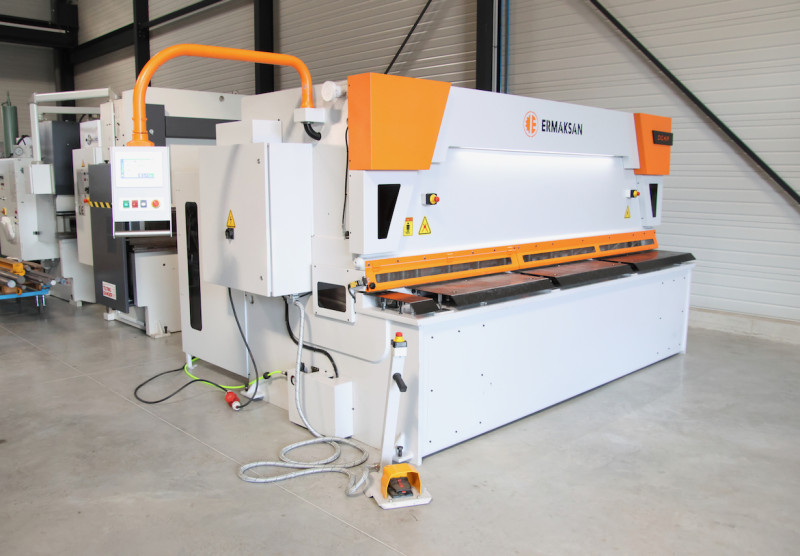

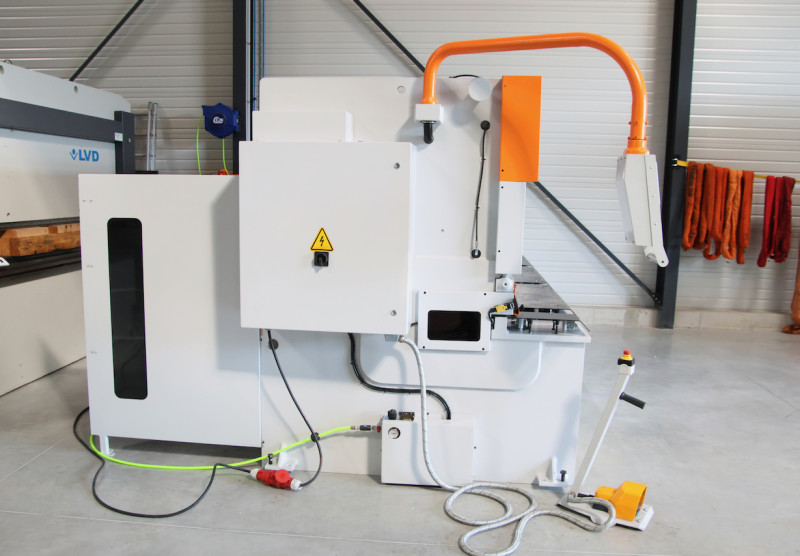

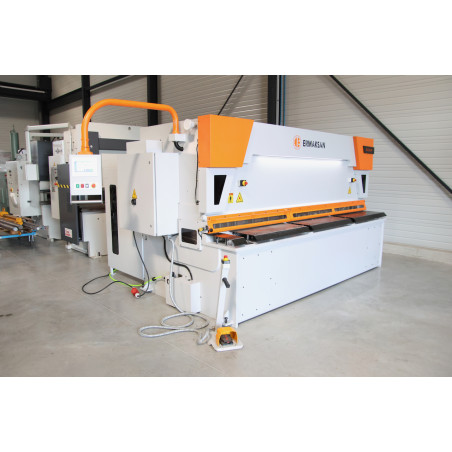

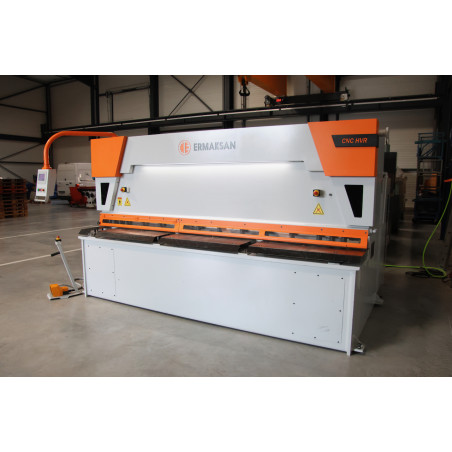

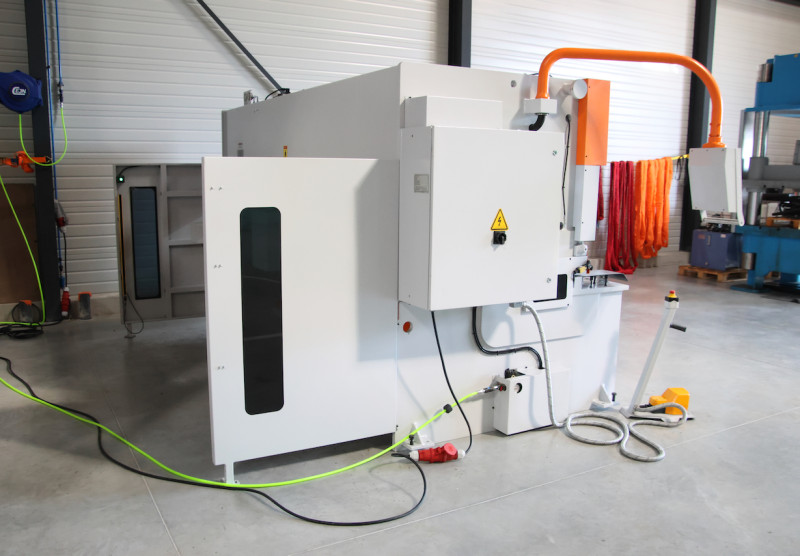

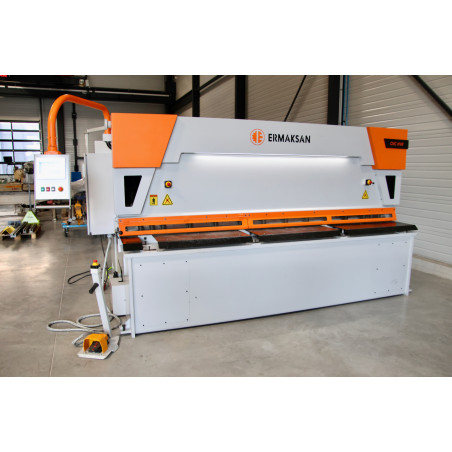

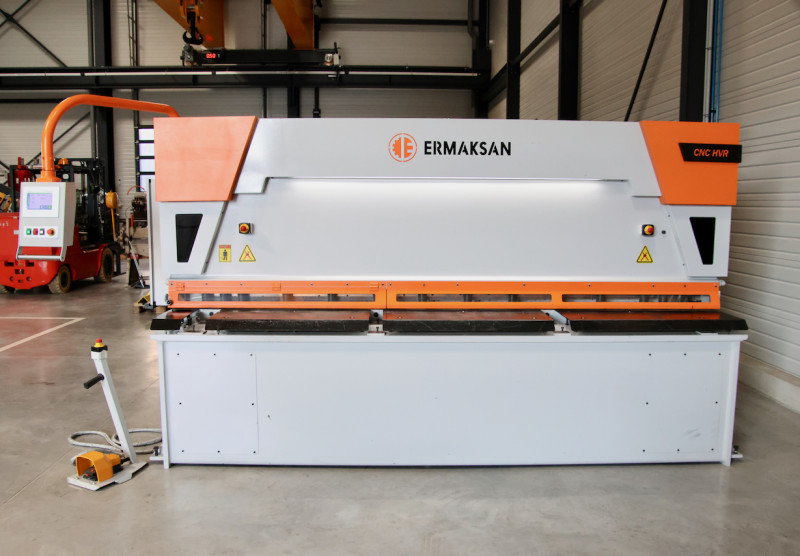

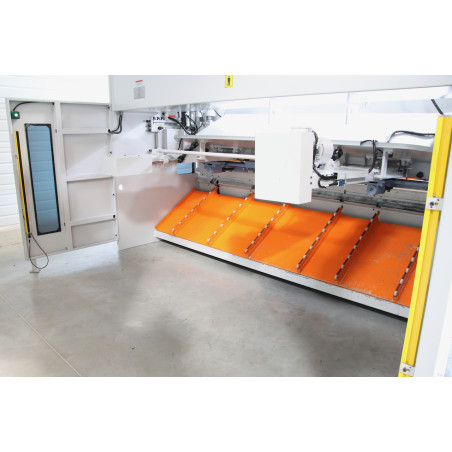

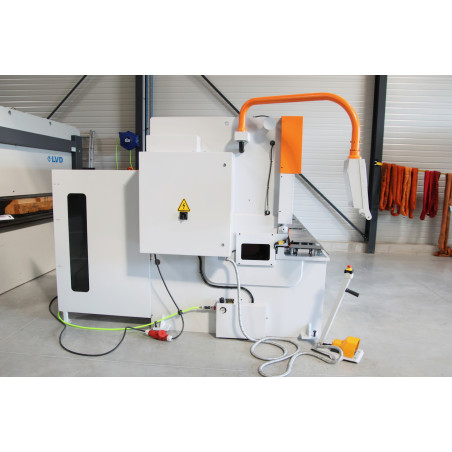

Used ERMAKSAN HVR 3100 x 6 mm shear
Data sheet

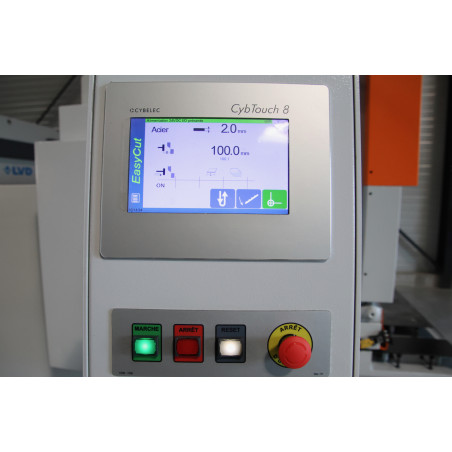

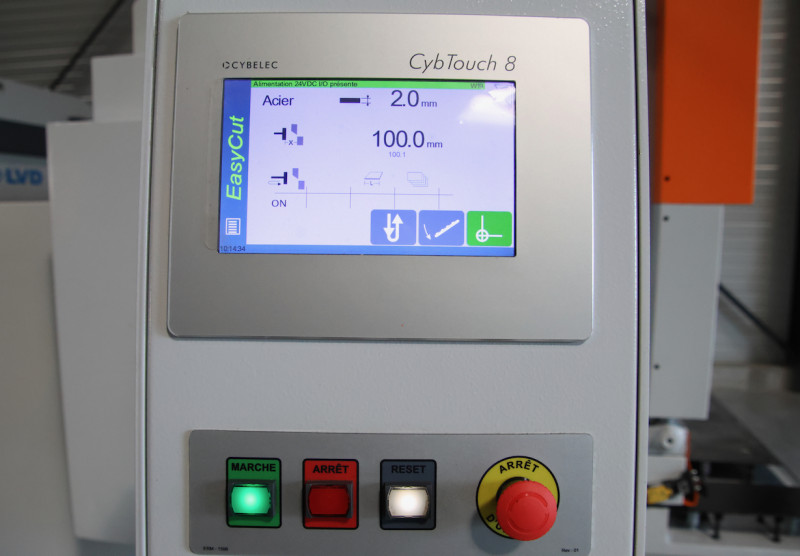

CN CYBELEC CYBTOUCH 8.
Automatic clearance adjustment between blades.
Automatic hydraulic cutting angle adjustment.

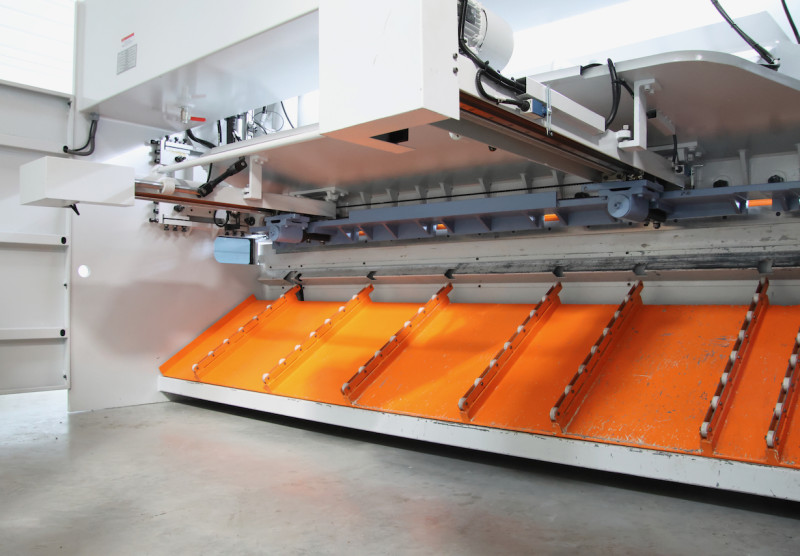

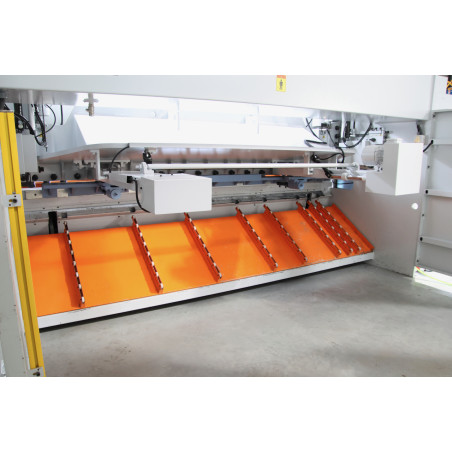

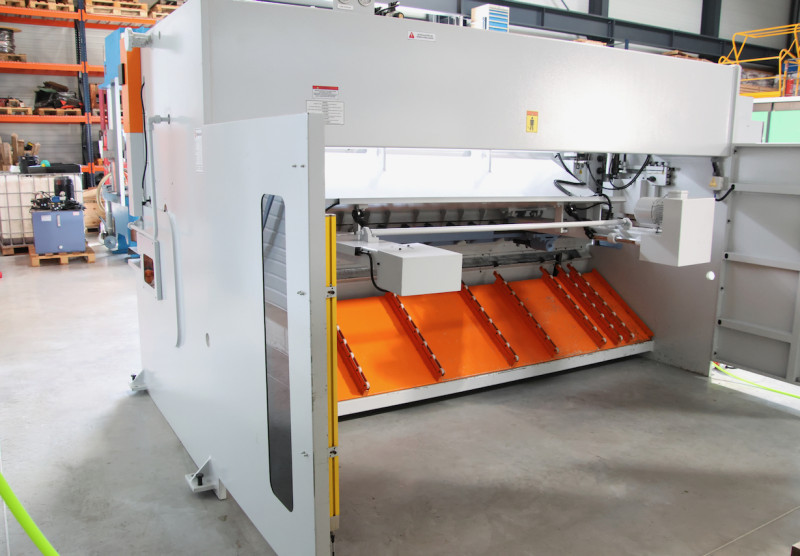

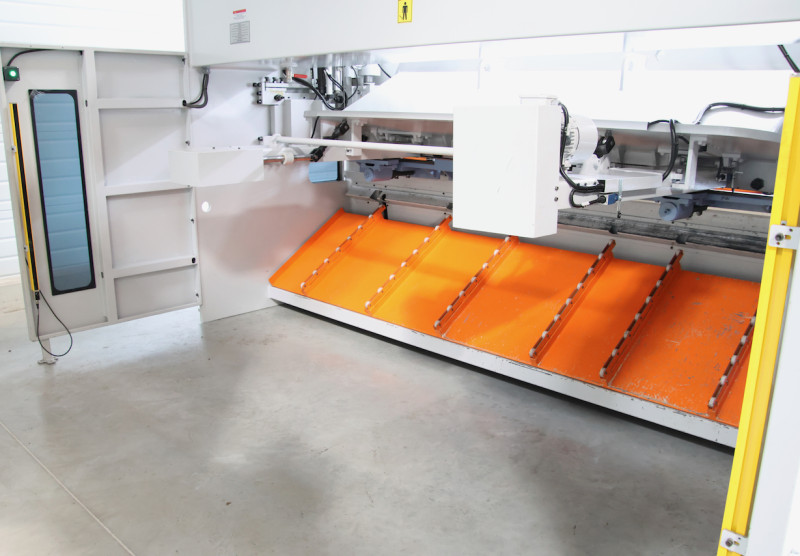

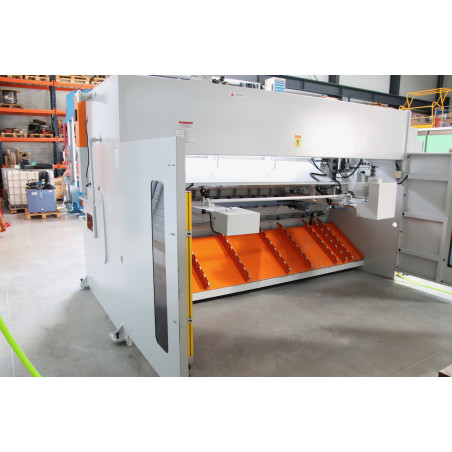

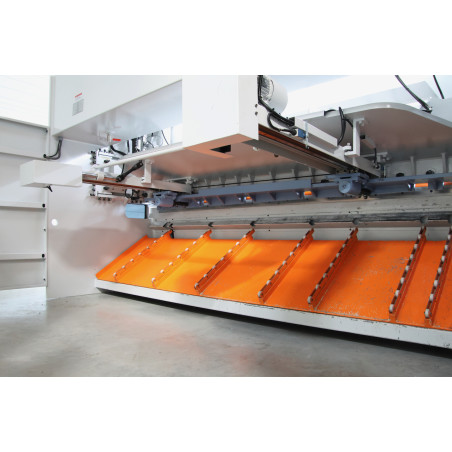

Pneumatic, single-piece rear support for thin sheet metal, length 800 mm, for sheet metal up to 3 mm.

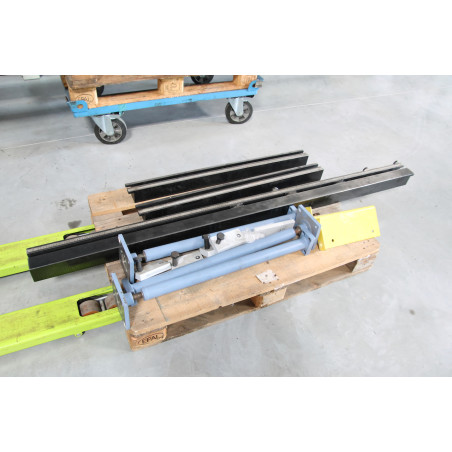

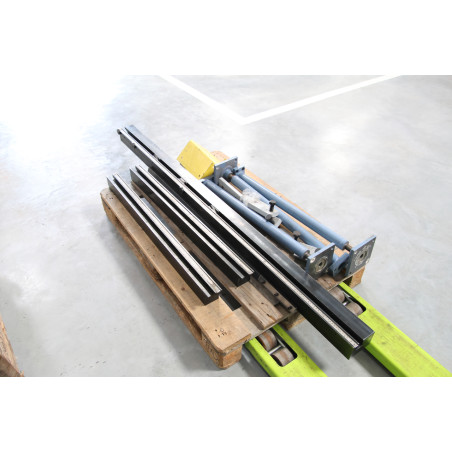

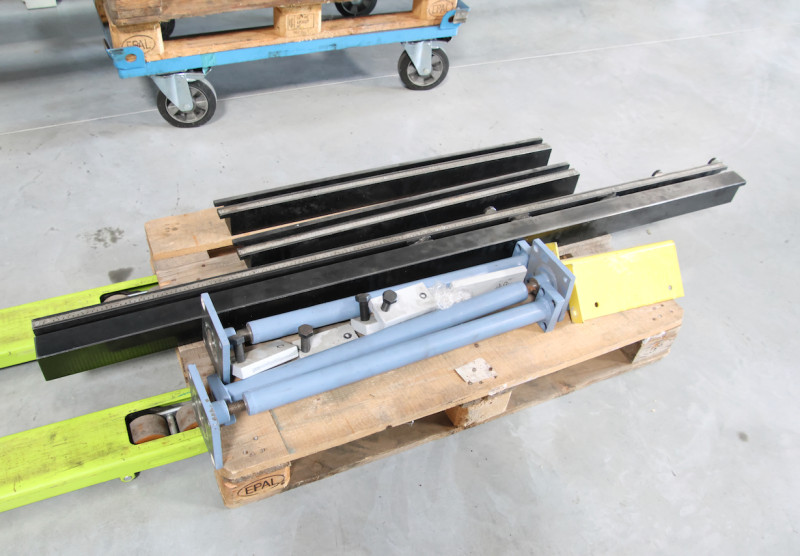

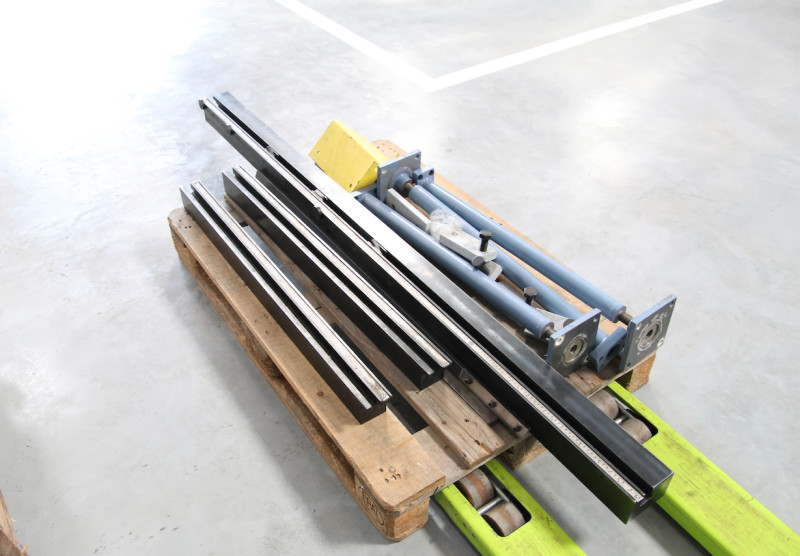

2000 mm square stop + 2 1000 mm supports.
Centralized lubrication.
Features
- Cutting length:
- 3100 mm
- Max. steel thickness:
- 6 mm
- Max. stainless steel thickness:
- 3 mm
- Number of sheet metal clamps:
- 14
- Number of cps/min.:
- 20
- Motorized rear stop stroke:
- 1000 mm
- Cutting angle:
- 1.2°
- Working height:
- 800 mm
- Main engine power:
- 11 kW
- Total length:
- 4000 mm
- Total width:
- 2700 mm
- Total height:
- 2100 mm
- Weight :
- 8500 kg
- Oil volume:
- 150 litres
- Year :
- 2022
Please note: The information on this page has been obtained to the best of our ability and belief, and from manufacturers wherever possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not constitute a representation or constitute conditions of contract. We advise you to check all the vital details.
