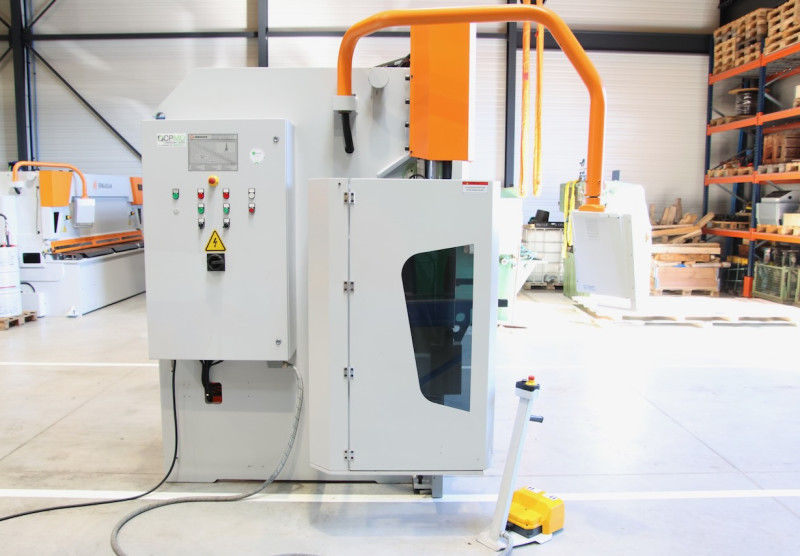

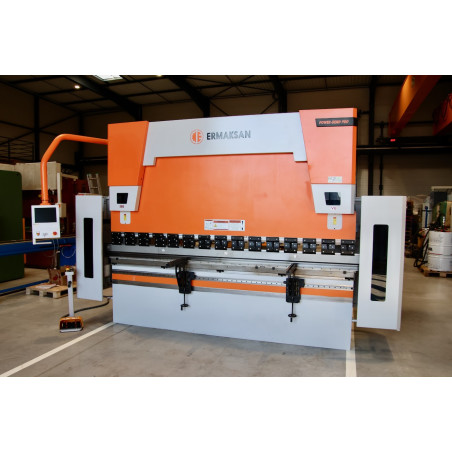

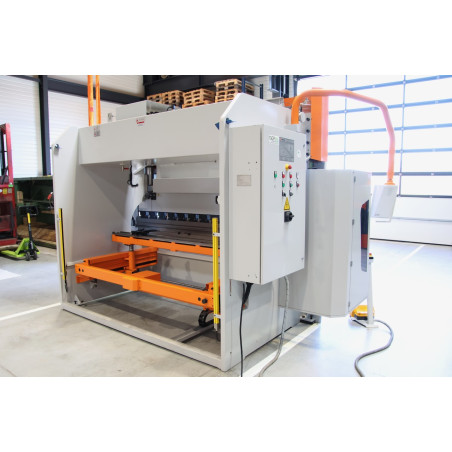

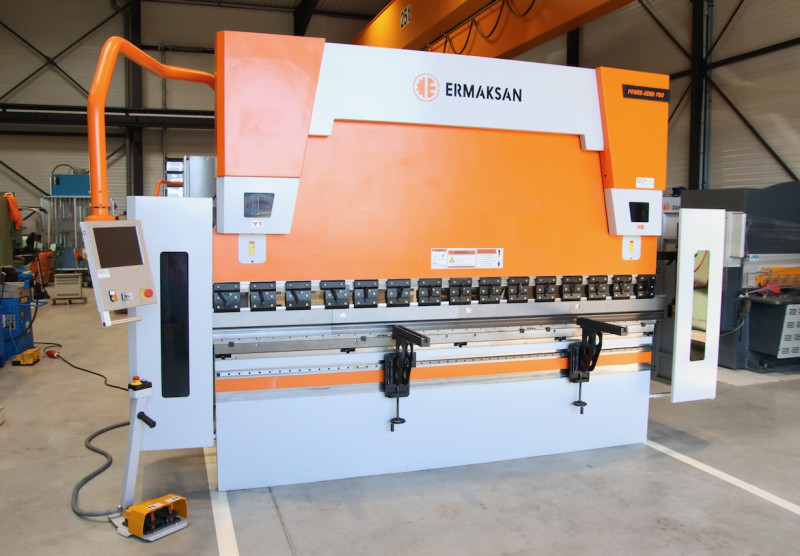

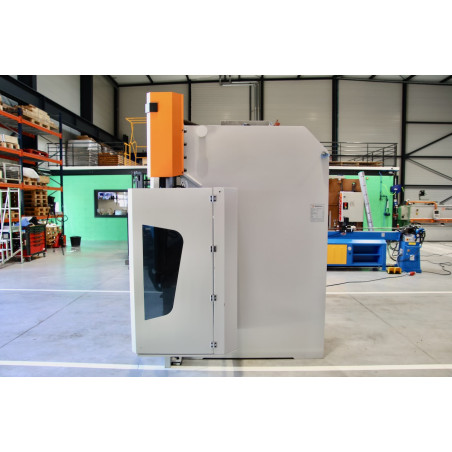

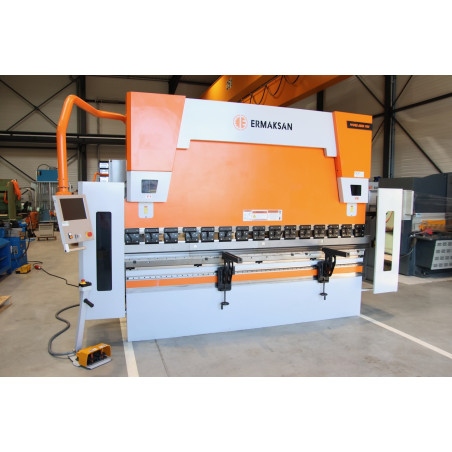

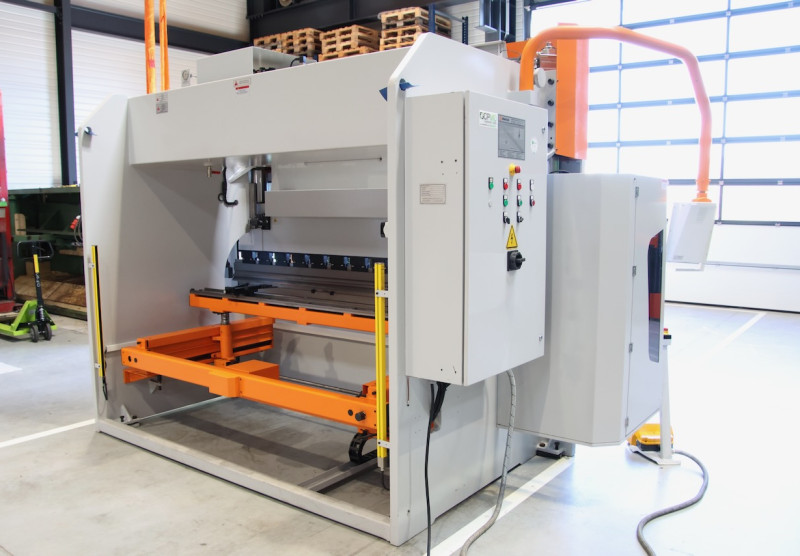

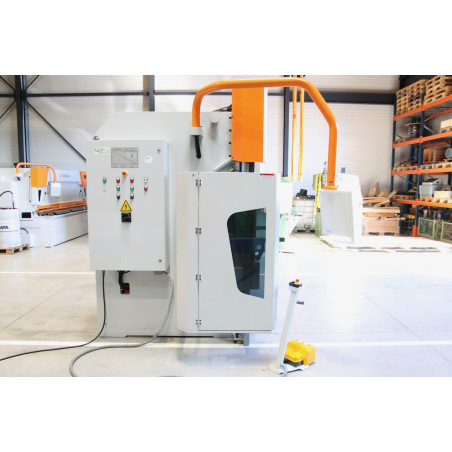

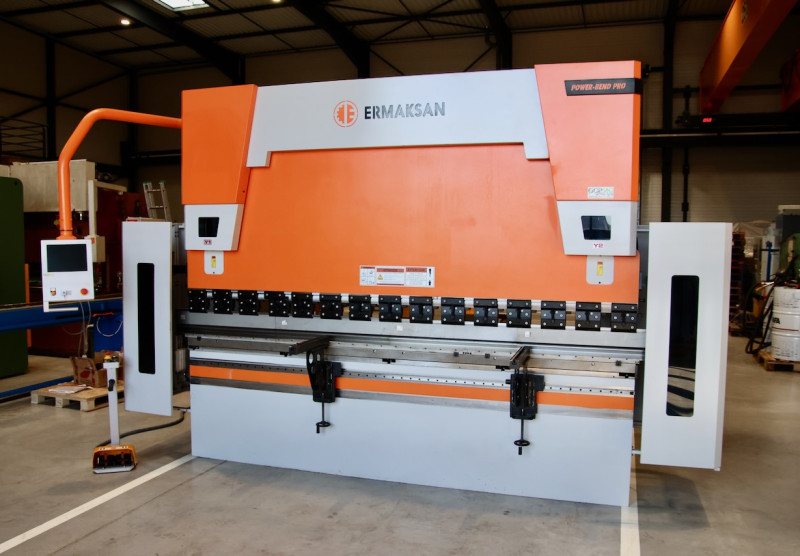

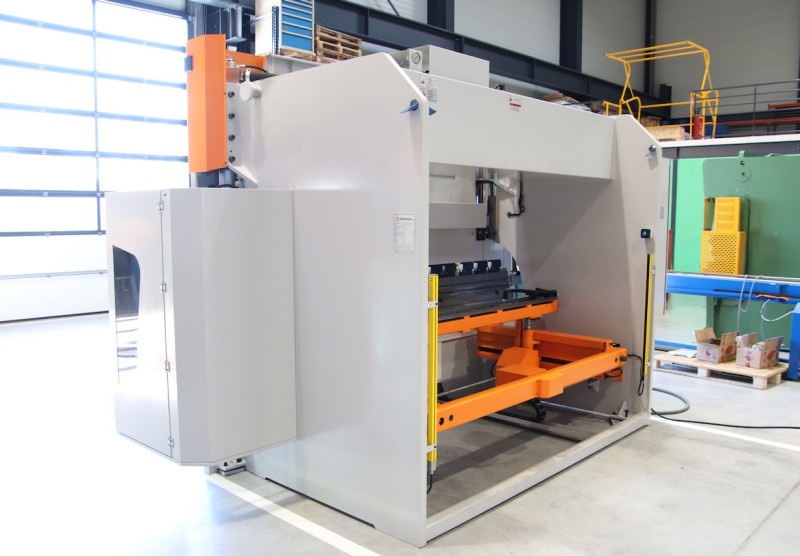

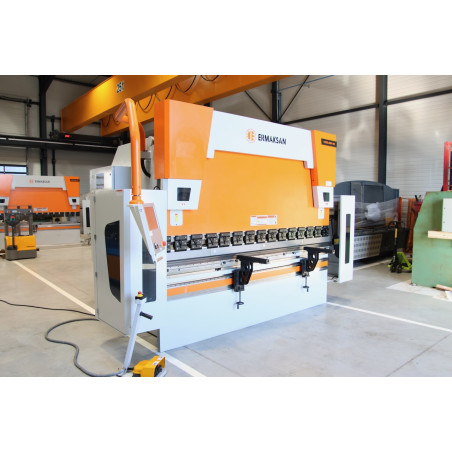

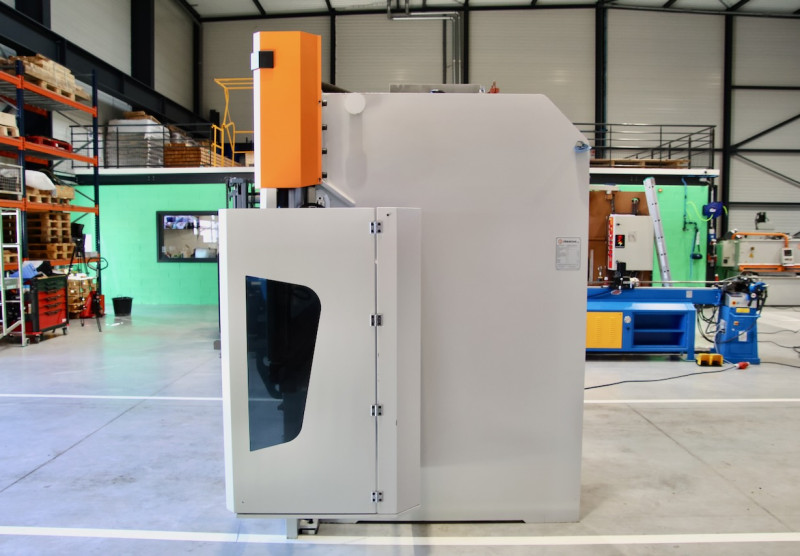

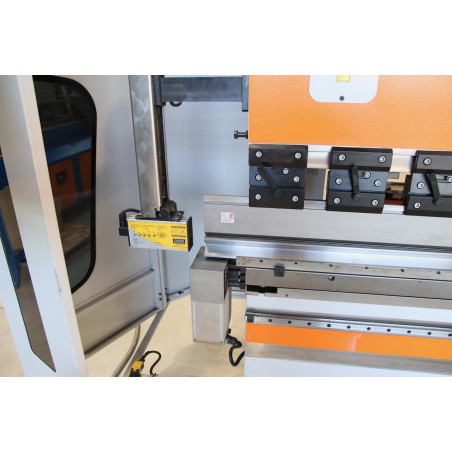

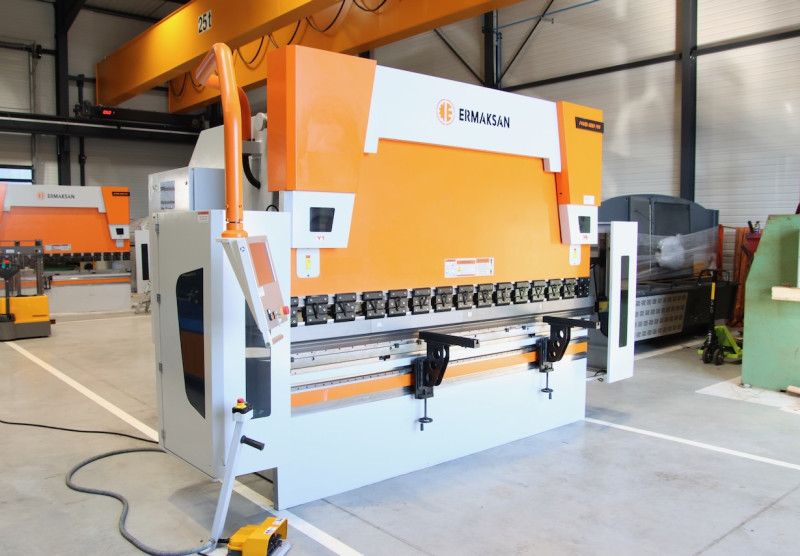

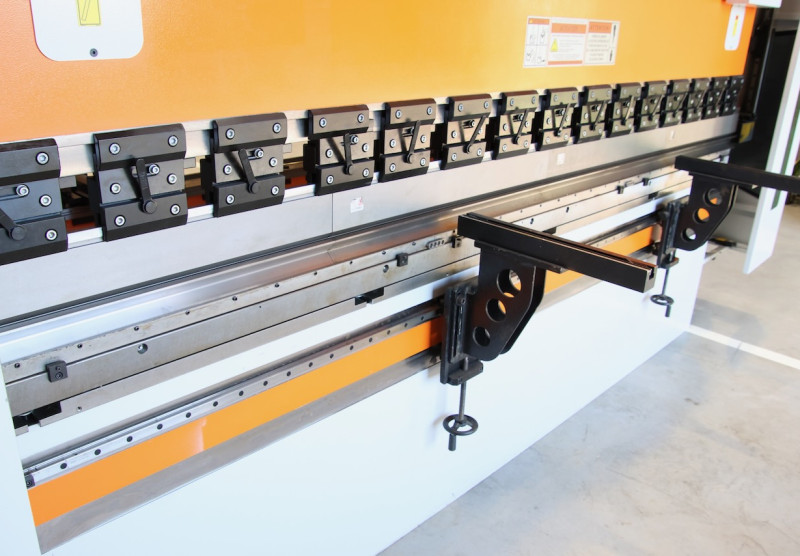

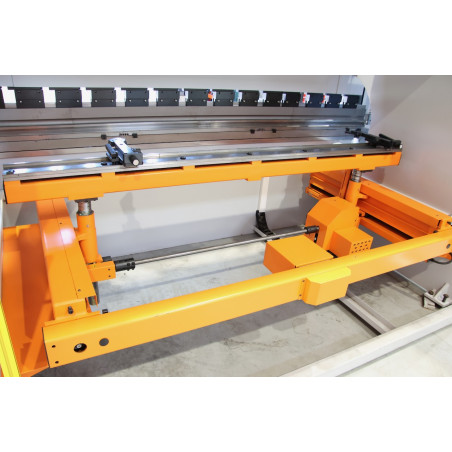

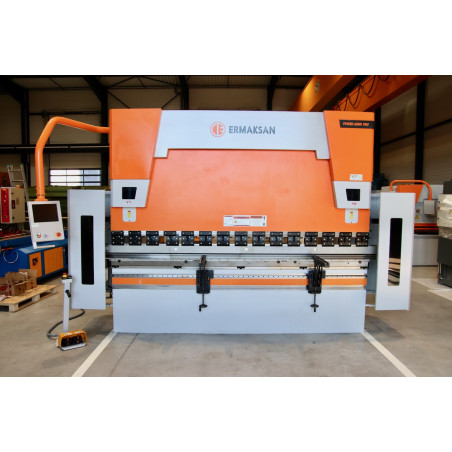

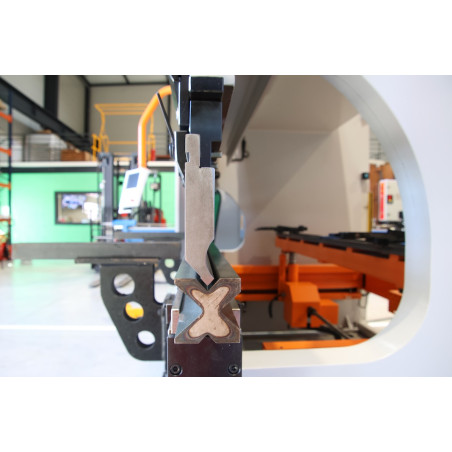

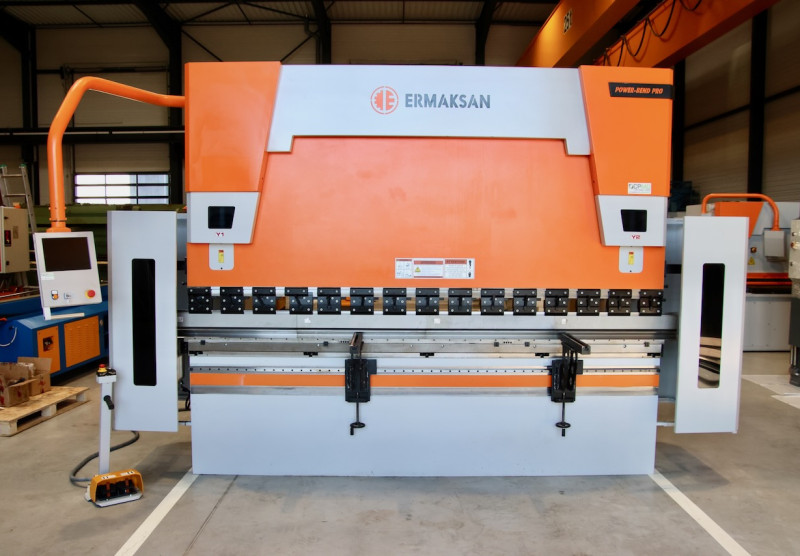

Used ERMAKSAN POWERBEND-PRO 3100/135 4-axis press brake

Data sheet

Features

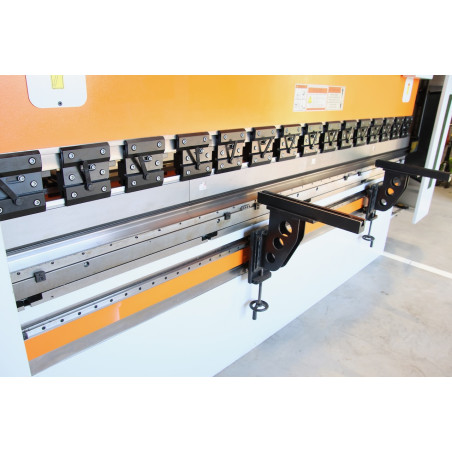

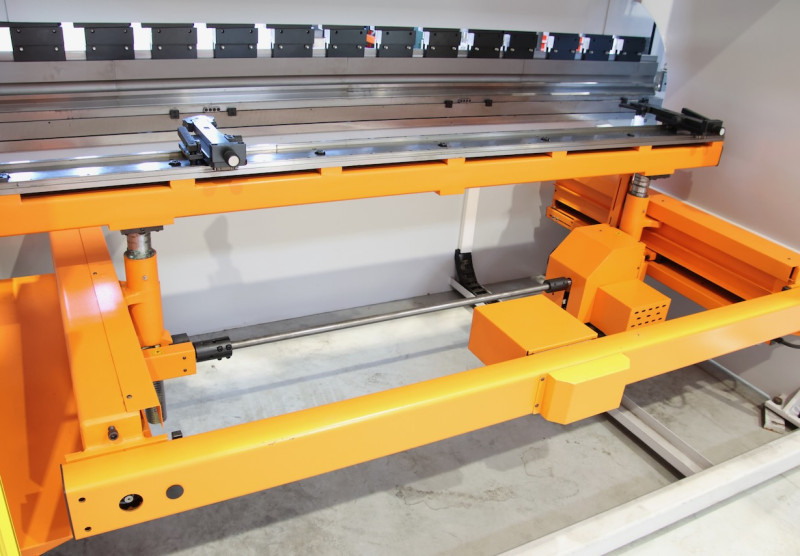

Motorized rear stop stroke:

800 mm

Working height:

900 mm

Main engine power:

11 kW

Weight :

7900 kg

Oil volume:

200 litres

Folding length:

3100 mm

Power :

135 T

Swan neck:

400 mm

Distance between uprights:

2600 mm

Slide stroke:

275 mm

Approach/work/return speeds:

200/10/120 mm/s

Backstop speed:

230 mm/sec

Table-slider passage:

550 mm

Table width:

90 mm

Dimensions of the machine L x W x H:

4250 x 2050 x 2700 mm
